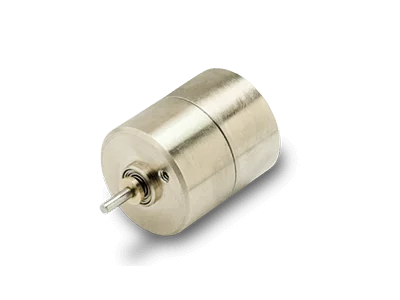

Disc Magnet Motors

Overview

Disc magnet motors are advanced micro-stepper motors that deliver outstanding dynamic performance, precise step resolution, and high acceleration unmatched by any other stepper motor on the market today. Built on advanced Swiss technology using thin disc magnets, they outperform conventional permanent-magnet steppers and excel in applications that demand both the precision of a stepper motor and the speed/acceleration characteristics of a brushless DC motor.

Key Features

• Low moment of inertia for excellent acceleration and high start/stop frequencies
• Short magnetic circuit enabling higher motor speeds and current boost
• Proprietary magnetization method achieves smaller step angles than conventional permanent-magnet steppers
• Package size optimized for fast incremental moves
• Low detent torque and higher efficiency than other stepper motors
• Highly customizable across 10 mm ~ 91 mm diameters
• Best-in-class torque-to-inertia ratio

Spec Overview

Applications

• Mobile applications
• Space-constrained devices
• Applications requiring fast, precise position control
• Applications requiring both precision and speed/acceleration performance

Full Model List (13 models)
